Precisely Positioned & Quick Fixed
The Fisso articulated arms can be positioned easily and precisely in the desired position.
All three joints are fixed with the central tightening knob. The quick lock and the stepless tensioning system assure high ease of use and allow efficient working.
Features
The Swiss-made Fisso brand stands for user-friendly, individualized holding systems that meet all customer requirements.
- Reliable Holders
- Clever central tightening system
- Secure, stable base
- Precise microfine adjustment
- Made of high-quality steel and light alloy
- Solid quality guarantees a long-lasting and maintenance-free service life
Several Designs

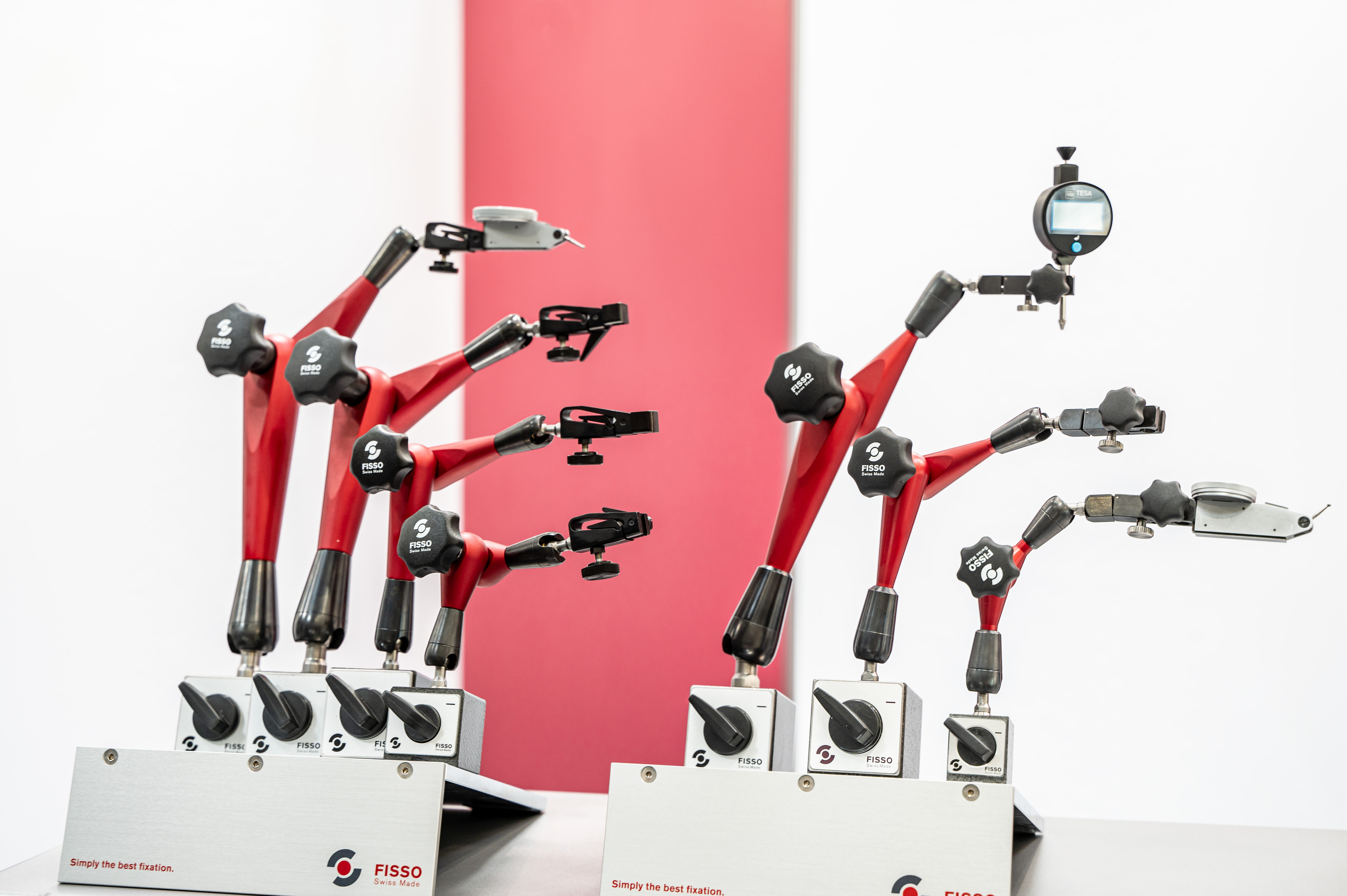

Strato Line
- Made of a high-quality red anodized light alloy.
- Available in four sizes.
- Overall height range starts with 185mm long to 1210mm longer.

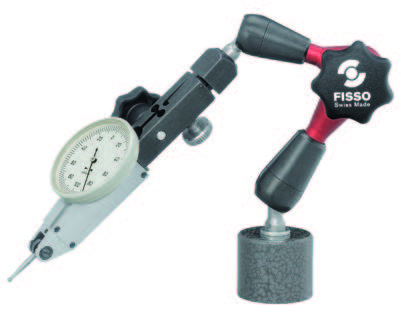

- The smallest Strato model
- suitable for use with dial test indicators on machine tools, in measurement systems and when only limited space is available
- Pre-tensioning cannot be set
- Available models: XS-13 F + TMS, XS-13 F, XS-13 f + C, XS-13 F + S2
- The mid-range Strato model
- for measurement probes.
- dial gauges can be used in any type of mechanical system
- Pre-tensioning cannot be set.
- Available models: S-20 F+M, S-20 F+S+TM, S-20 F+AM, S-20 F, S-20 F+AMO

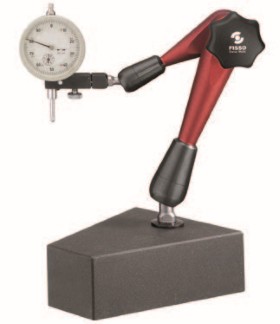

- The large Strato model
- Steplessly adjustable pre-tensioning to protect the instrument.
- Available Models: M-28 F+M, M-28 F + V, M-28 F, M-28 F+G, M-28 F+SM 3
Classic Line
- Made of steel with chrome arm sections.
- Available in six sizes and can be combined with different bases.
- An action radius of movement ranging from 130 to 630 mm.
Base Line
- The Base Line models are simple, practical solutions with a high degree of stability for X and Y axis applications.
- Available in three sizes.
Questions? You’re covered
Yes, our FISSO products are ROHS and REACH compliant.
An articulated arm can be used wherever something needs to be held and adjusted quickly and easily. Below are some areas where Fisso products are used:
- in the industrial field as holder for dial gauges,
- in medical fields, for holder of endoscopes, as instrument holder, as holder for anesthesic / repiratory tubes, as patient arm positioners and many others OEM applications.
- in optical field as holder for lasers, cameras, microscopes, sensors or lights
- in the photo-Studio as holder for objects in the stilllife-Photography
FISSO articulated arms have used the mechanical clamping technique
since it was invented by Carlo Baitella in 1972.
They have been continuously developed and refined over years.
The mechanical technology is very quick to clamp, maintenance-free and has a long service life. Furthermore, it does not require electricity (electric) and cannot leak (hydraulic).
The mechanical technology is very quick to clamp, maintenance-free and has a long service life. Furthermore, it does not require electricity (electric) and cannot leak (hydraulic).
The main difference are:
- Strato line is made in high quality light alloy whereas Classic line is made in chromed-plated steel.
- Classic Line has a broader portfolio, including models with a large action radius and high holding power.
