The Geradi SPA is the first Italian company to design and develop a complete Steel Modular Workholding System.

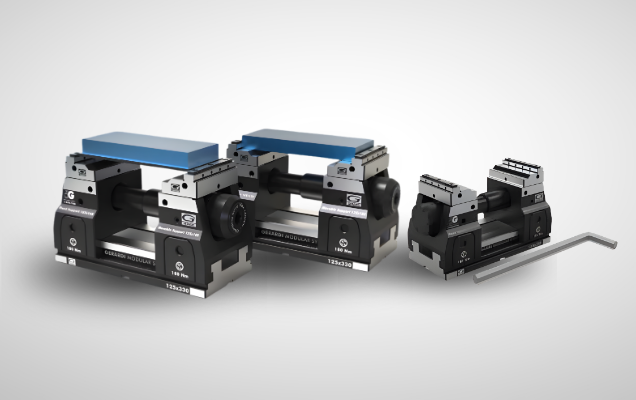

5G Vises
Bring your machining to new peaks
Advanced technology for 5 axis machine
Versatile and stable, the 5G vise guarantees precision and repeatability in every clamp.
Anchoring brackets lock jaw supports, strengthening the structure and ensuring minimal deflection at higher clamping heights.
The screw system’s proximity to the clamping surface enables higher clamping without loss of force.
Features
-
HIGH SCREW SYSTEM
The screw assembly positioned close to the clamping area optimizes the clamping forces generated and reduces deflection, creating the conditions for a stable, precise, and repeatable hold.
-
FROM MOBILE TO FIXED
The vise holding clamps transform the two mobile slides into fixed supports, in order to strengthen the structure and minimize flexion during the clamping.
-
LIFT THE WORKPIECE
The jaws are mounted manually without tools, quickly and precisely, thanks to springs and a dovetail lock. The wide range of available jaws allows quick optimization of the workpiece grip.
-
HARDENED TOP JAW INSERTS
Hardened, interchangeable inserts shaped to maximize grip on various materials.

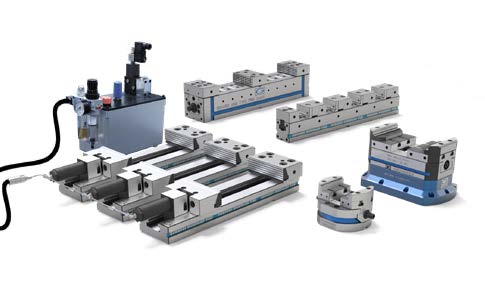

Modular Vises
A Versatile solution for present and future machining
The appropriate solution in every situation.
With interchangeable components, modular vises allow precise alignment across multiple units mounted on a single machine.
Investing in Gerardi’s MACRO modular vises means joining a system that evolves constantly, ensuring maximum value from every fixture.
Fantastic Four

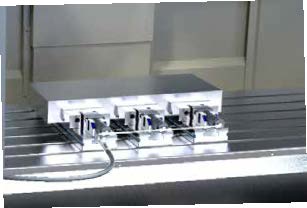

FOR AUTOMATE PROCESSES & ROBOTIZE THEM
The STD and StandardFLEX automated vises are designed for the automatic and robotized use on machining centers, specifically made to work on vertical centers.
- Quick Clamping
- Great Rigidity
- Pull-Down Action
- Accuracy ±0,02MM
FOR SINGLE, DOUBLE AND SELF-CENTERING CLAMPING
FMS vises for 5 axis machining operations with high jaws to keep the workpiece clamped far from the vise and the table.
- 3 vises in 1
- Also for 5 Axis CNC.
- Verticle Set-up Ready
- Unlimited Jaws Range.
AVAILABLE SOFT MACHINEABLE JAWS TOO
Limitless range of clampings.
Jaws are available in: step, milled, smooth and for round workpieces, double, machineable versions Etc.
Possibility to clamp up to 19 workpieces on the same vise.
- Extreme Versatility
- Unlimited Clamping Range
- No Wear
- Short Set-up Times
HIGH-PRECISION SELF CENTERING VISES
Designed to work on machining centers with small tables or 5-axis centers.Central screw with double thread, granting a perfect self-centered clamping using a basic wrench.
- Self-Centric
- Highest Accuracy ±0,02mm
- No Wear
- Rigidity & Safety
